5kg single point load cell weighing sensor
Name:5kg single point load cell weighing sensor
Type:CZL-611N
Manufacturer:our micro load cell can be applied in hand scales,kitchen scales,postal scales.fishing scale,baby body scales and micro electronic weighing system.
Product Description:

5 kg small-scale precision load cell

our micro load cell can be applied in hand scales,kitchen

scales,postal scales.fishing scale,baby body scales and micro electronic weighing system.


Parameters:


Technical

data

Unit

Capacity

5

kg

Output Accuracy/sensitivity

1.0±0.15

mV/V

Combined Error

0.05

%F.S

Creep

±0.05

(3min)%F.S

Zero drift

±0.05

(1min)%F.S

Zero temp. drift

≤±0.05

%F.S/10

Zero Balance

±0.1

mV/V

Input Resistance

1055±15

Ω

Output Resistance

1000±10

Ω

Insulation Resistance

2000

MΩ

Overload

150

%F.S

Recommended Excitation voltage

10

VDC

Cable:0.8*270mm red: E+ black: E- white: V-  green:V+

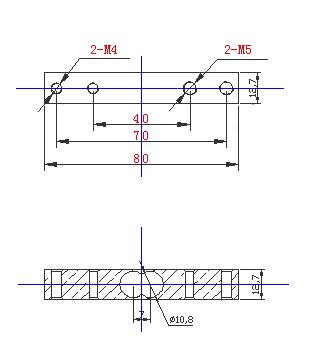

Dimention size:
