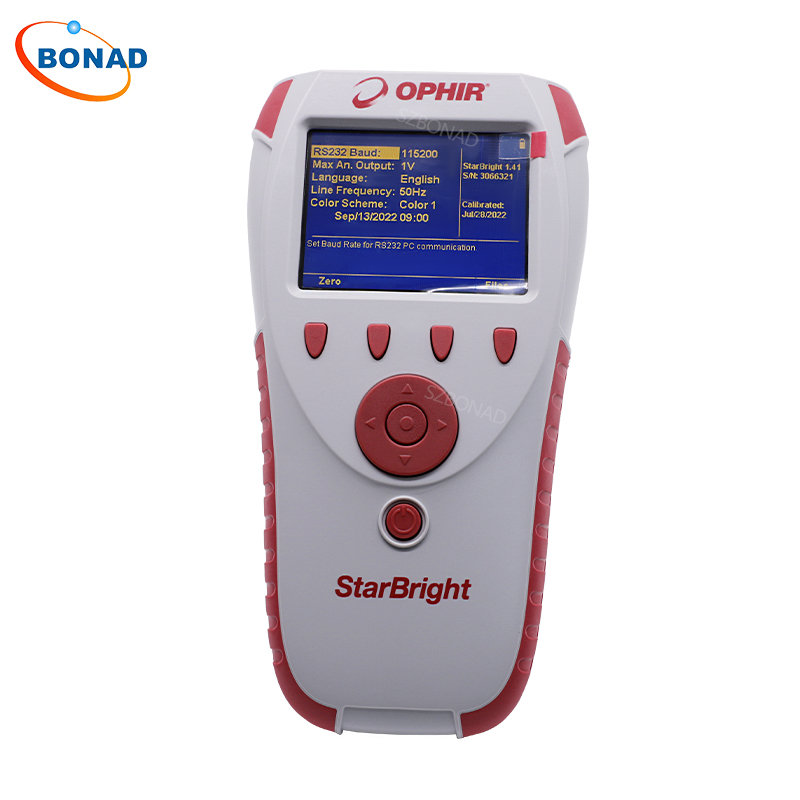

StarBright P/N 7Z01580
Feature Rich Laser Power/Energy Meter
Description:
• Compatible only with all standard Ophir thermal, BeamTrack, pyroelectric (PE-C series only) and photodiode sensors
• Brilliant color large size TFT 320x240 display
• Choose between Digital with Bargraph, Analog Needle, Line Plot (for laser tuning),
Pulse Chart, Pass/Fail, Position, Stability, Real Time Statistics displays
• Sophisticated power and energy logging, including logging every point at up to 5000Hz with Pyro sensors
• Math functions for advanced processing such as Density, Scale Factor, Normalize against base line, etc.
• Can mix functions together and display the results graphically. Function results can also be logged
• USB Flash Drive for nearly unlimited data storage
• USB and RS232 interfaces with StarLab PC application and User Commands (see User Commands document in website)
• LabVIEW driver and COM Object Interface
• Pulsed Power measurements with Thermopile detectors
• Low Frequency Power - power measurement from pulse cycle energy (for VCSEL)
• Exposure measurement (Energy Summing) with Photodiode and Pyroelectric sensors
• Select between English, Japanese, Russian, and Chinese interfaces
• Soft keys and menu driven functions with context sensitive help
• Compact handheld design with rubberized bumpers and optimized kickstand
• Backlighting and rechargeable battery
• Scalable Analog Output
StarBright is the most feature rich handheld laser power/energy meter on the market. Just plug in one of the many Ophir sensors and you have a whole measurement laboratory at your fingertips. The bright color display gives unparalleled legibility and ease of interpreting information. StarBright has many on board features such as laser tuning, data logging, graphing, normalize, power or energy density, attenuation scaling, max and min limits. StarBright can also display the power or energy as a high resolution simulated analog needle display.
StarBright can be either battery operated or from an AC source with the charger plugged in at all times. Its bright display and user-selectable color format enables ease of use in dark room conditions or when wearing protective glasses.The built-in USB and RS232 interfaces and StarLab PC software allow display and either in real time or from previously stored data.
Results are displayed graphically on a PC. To support PC interfacing, LabVIEW drivers, a COM Object Interface and demo source code are provided.
Specifications
Power Meter: Brilliant color TFT 320 x 240 pixel graphics LCD. Large 16mm digits.
Features: Many screen features including power with multicolor bar graph, energy, average, exposure, frequency, graphs, scaling, special units, and more.
Outputs:USB, RS232 and user selectable 1, 2, 5 and 10 Volt full scale analog output.
Screen Refresh: 15 times/sec

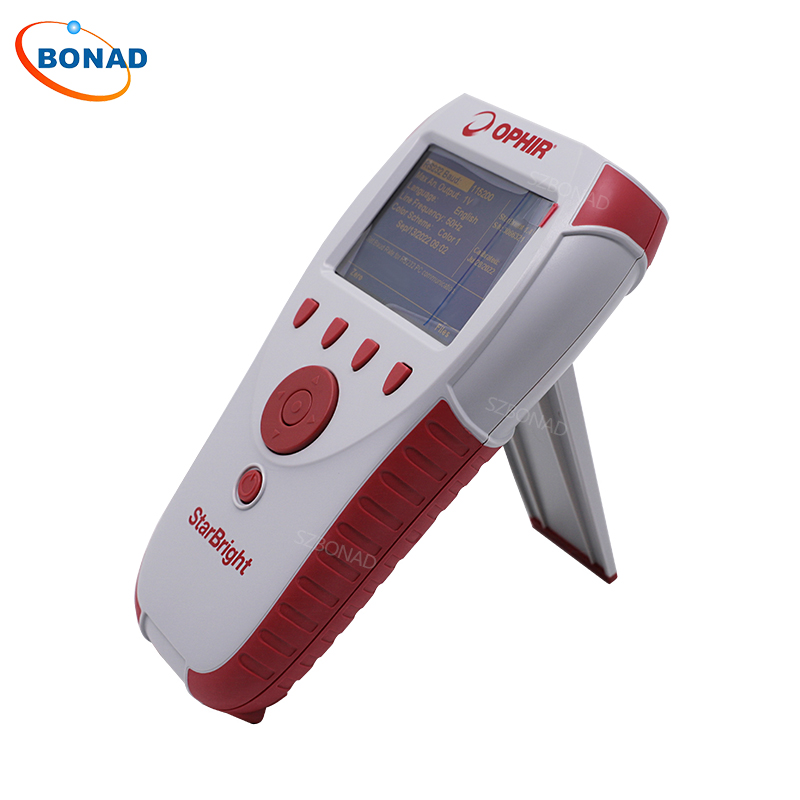

Case: Molded high impact plastic with optimized angle kickstand. Rubberized sides for easy grip and protection against damage.
Size: Folds to a compact 212mm L x 114mm W x 40mm H
Battery: Rechargeable Li-ion batteries with typically 8 hours between charges. The charger can be ordered from your local distributor. The charger also functions as an AC adapter.
Data Handling: Data can be viewed on board or transmitted to PC:
On Board: Data stored to USB Drive (Thumb Drive) at rates up to 5000 points/s.
Sensor Features: Works with Thermopile, BeamTrack, Pyroelectric (PE-C series) and Photodiode sensors. Works with our PD300RM sensors.
Program Features: Preferred start up configuration can be set by user. User can recalibrate power, energy, response time and zero offset.
Compliance: CE, UKCA, China RoHS |
