FL250A-LP2-DIF-33 P/N7Z02787

Laser Thermal Power Sensors

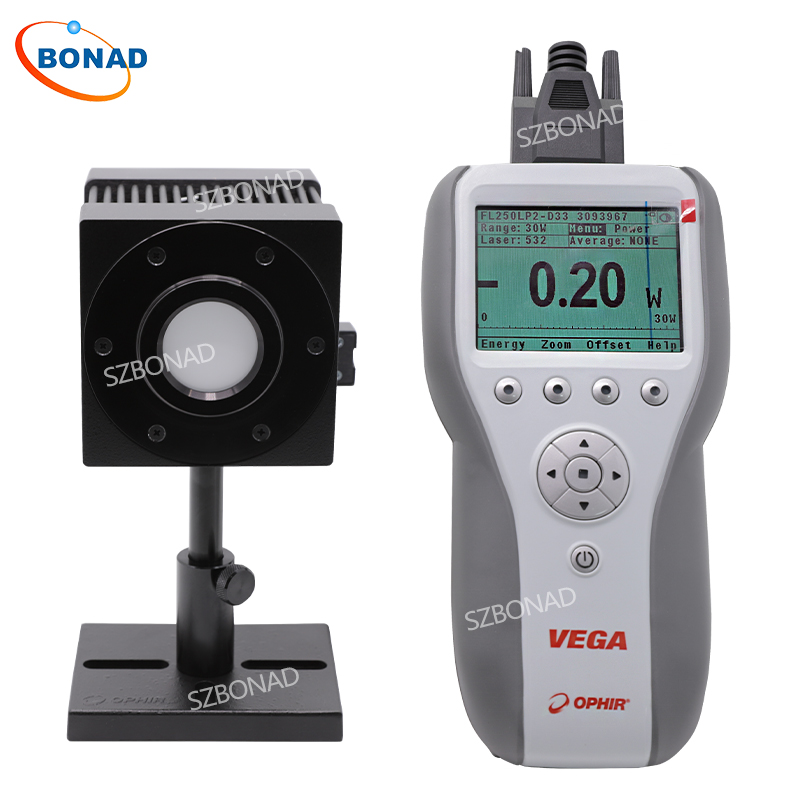

The FL250A-LP2-DIF-33 is a fan cooled thermal power/energy laser measurement sensor for high power density and long pulse lasers. It has a 33mm aperture and can measure power from 400mW to 250W continuously and energy from 400mJ to 600J. Its high damage threshold LP2 absorber covers the spectral range from 0.4 to 3µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

• Up to Ø35mm apertures

Datasheet:

• Absorber Type

  LP2 + diffuser

• Aperture

  Ø33mm

• Spectral Range

  0.4-3µm

• Power Range

  400mW-250W

• Energy Range

  400mJ-600J

• Backscattered Power

  N.A.

• Dimensions

  90 L x 90 W x 106 D (mm)

• Max Pulse Energy

  600J

• Max Average Power Density

  2kW/cm²

• Response Time

  2.5 s

• Max Energy Density
  (for <100ns)

  0.5J/cm²

• Max Energy Density
  (for 2ms)

  400J/cm²

• Max Average Power

  250W

• BeamTrack Functions

  N.A.

• Compliance

  CE, UKCA, China RoHS
