CFBLBH Tension load cell
Specifications
1. Elastomer structure 2. Shear stress principle 3. Low profile 4. Anti-bias load 5. Good strength

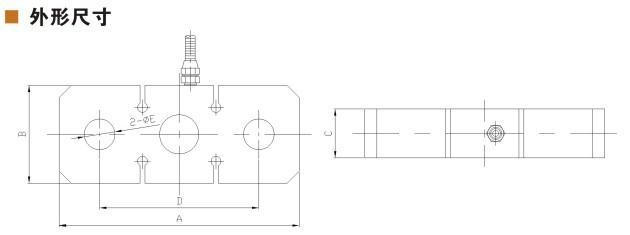

Technical indicators
Measuring Range
A
B
C
D
2-ΦE
1-3t
196
80
30
130
25
5-8t
40
10-15t
260
100
45
170
20t
50
25-30t
320
120
55
200
50t
360
65
230
60
100t
570
85
96
Parameters
Unit
Technical Index
Sensitivity
mV/V
1.5-2.0±0.05
temperature sensitivity coefficient
≤%F·S/10℃
±0.05
Nonlinear
≤%F·S
Operating Temperature Range
℃
-20℃~+80℃
Lag
Input Resistance
Ω
350±20Ω
Repeatability
±0.03
Output Resistance
350±5Ω
Motility changes
≤%F·S/30min
Safety overload
150% F·S
Zero output
±1
Insulation Resistance
MΩ
≥5000MΩ(50VDC)
Zero temperature coefficient
Recommended excitation voltage
V
10V-15V
