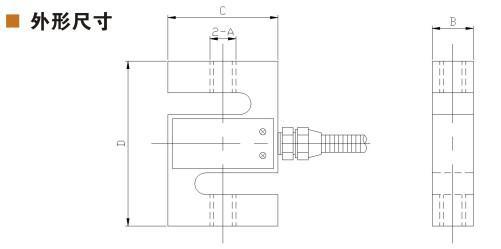

Measuring Range

A

B

C

D

5-50kg

M8×1.25

12.7

50.8

63.5

100-300kg

M12×1.75

19

50.8

76.2

500kg-1t

M12×1.75

25.4

50.8

76.2

2-5t

M18×1.5

25.4

76.2

108

Parameters

Unit

Technical Index

Parameters

Unit

Technical Index

Sensitivity

mV/V

2.0±0.05

temperature sensitivity coefficient

≤%F·S/10℃

±0.03

Nonlinear

≤%F·S

±0.03

Operating Temperature Range

℃

-20℃~+80℃

Lag

≤%F·S

±0.03

Input Resistance

Ω

350±20Ω

Repeatability

≤%F·S

±0.03

Output Resistance

Ω

350±5Ω

Motility changes

≤%F·S/30min

±0.03

Safety overload

≤%F·S

150% F·S

Zero output

≤%F·S

±1

Insulation Resistance

MΩ

≥5000MΩ(50VDC)

Zero temperature coefficient

≤%F·S/10℃

±0.03

Recommended excitation voltage

V

10V-15V
