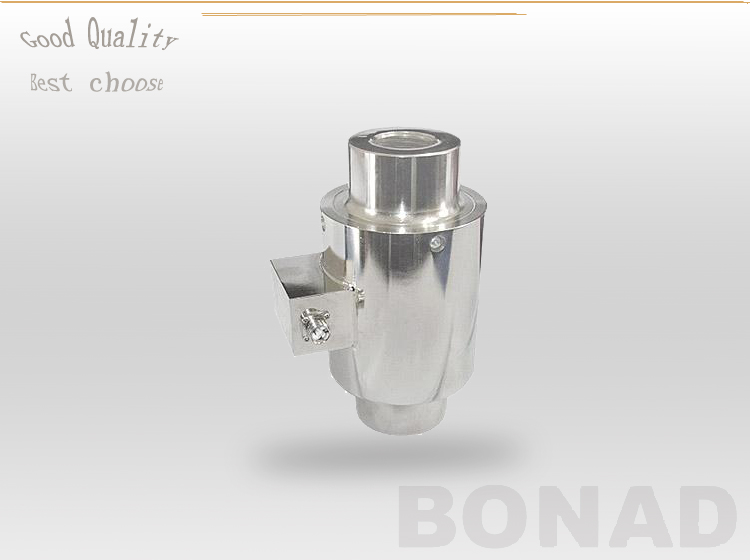

CFBLT Drum /cylinder tension sensor LOAD CELL

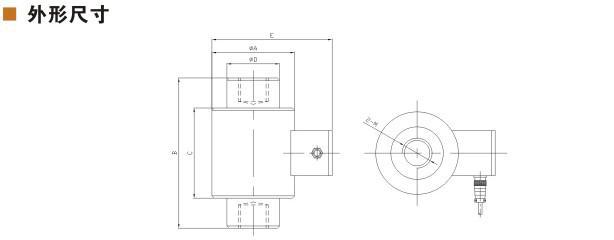

Technical parameters
Measuring
Range
ΦA
ΦD
C
B
2-M
E
10-30t
110
70
200
120
M40×3
140
50-100t
155
115
324
M72×4
190
150-200t
166
420
240
M110×6
250-300t
238
500
280
M130×6
Parameters
Unit
Technical Index
Sensitivity
mV/V
1.0-1.5±0.05
temperature sensitivity coefficient
≤%F·S/10℃
±0.1
Nonlinear
≤%F·S
±0.3
Operating Temperature Range
℃
-20℃~+80℃
Lag
Input Resistance
Ω
750±20Ω
Repeatability
±0.15
Output Resistance
700±5Ω
Motility changes
≤%F·S/30min
Safety overload
150% F·S
Zero output
±1
Insulation Resistance
MΩ
≥5000MΩ(50VDC)
Zero temperature coefficient
Recommended excitation voltage
V
10V-15V
