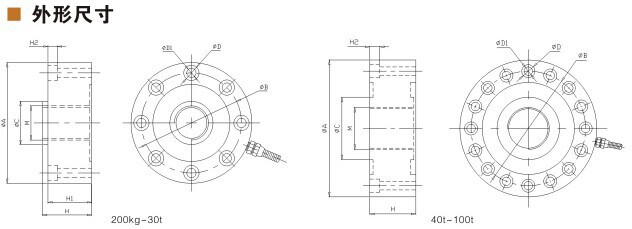

Measuring

 Range

ΦA

ΦB

ΦC

M

H

H1

H2

ΦD

ΦC

200-700kg

88

72

22

M12×1.75

34

31

7.2

8-Φ11

8-Φ7

2-5t

105

89

32

M16×1.5

37

34

7.2

8-Φ11

8-Φ7

10-20t

120.6

101.8

39

M32×1.5

53.5

41

10.5

8-Φ14

8-Φ9

30t

141

116.8

50.4

M40×1.5

57.2

50.8

11

8-Φ18

8-Φ11

Measuring

Range

ΦA

ΦB

ΦC

M

H

H2

ΦD

ΦD1

40-60t

208

174

95

M64×3

70

15

16-Φ20

16-Φ13

80-100t

280

230

120

M76×3

90

20

16-Φ30

16-Φ17

Parameters

Unit

Technical Index

Parameters

Unit

Technical Index

Sensitivity

mV/V

2.0±0.05

temperature sensitivity coefficient

≤%F·S/10℃

±0.03

Nonlinear

≤%F·S

±0.03

Operating Temperature Range

℃

-20℃~+80℃

Lag

≤%F·S

±0.03

Input Resistance

Ω

750±20Ω

Repeatability

≤%F·S

±0.03

Output Resistance

Ω

700±5Ω

Motility changes

≤%F·S/30min

±0.03

Safety overload

≤%F·S

150% F·S

Zero output

≤%F·S

±1

Insulation Resistance

MΩ

≥5000MΩ(50VDC)

Zero temperature coefficient

≤%F·S/10℃

±0.03

Recommended excitation voltage

V

10V-15V
