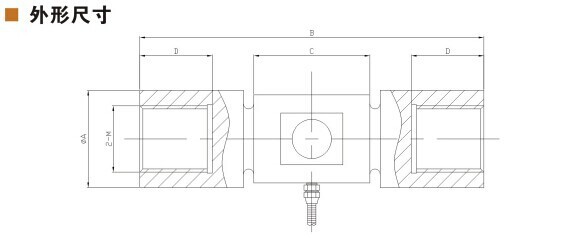

Measuring

Range

ΦA

B

C

2-M

D

20t

60

180

64

M36×4

40

30t

76

213

73

M45×4.5

45

50t

94

332

112

M64×3

70

100t

112

367

130

M76×3

80

Parameters

Unit

Technical Index

Parameters

Unit

Technical Index

Sensitivity

mV/V

1.5±0.05

temperature sensitivity coefficient

≤%F·S/10℃

±0.1

Nonlinear

≤%F·S

±0.1

Operating Temperature Range

℃

-20℃~+80℃

Lag

≤%F·S

±0.1

Input Resistance

Ω

400±20Ω

Repeatability

≤%F·S

±0.05

Output Resistance

Ω

350±5Ω

Motility changes

≤%F·S/30min

±0.1

Safety overload

≤%F·S

150% F·S

Zero output

≤%F·S

±1

Insulation Resistance

MΩ

≥5000MΩ(50VDC)

Zero temperature coefficient

≤%F·S/10℃

±0.1

Recommended excitation voltage

V

10V-15V
